Floorplan - 2009 Starcraft Autumn Ridge SE 325RLSA
-
-
-
-
-
-
-
-

- List Price: $14,888
-
Sleeps 6
-
1 Slides
-
Rear Living AreaFront Bedroom
-
36ft Long
-
7,170 lbs
-
Misty, Slate Blue, Mirage Sand

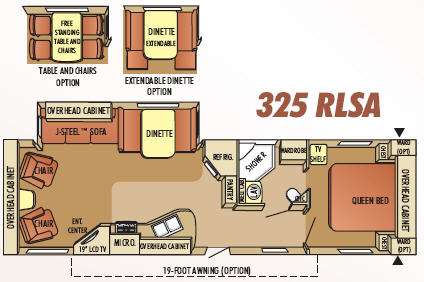

325RLSA Floorplan
Specifications
Sleeps | 6 | Slides | 1 |
Length | 35 ft 6 in | Ext Width | 8 ft |
Ext Height | 11 ft 1 in | Int Height | 6 ft 8 in |
Interior Color | Misty, Slate Blue, Mirage Sand | Hitch Weight | 950 lbs |
GVWR | 9200 lbs | Dry Weight | 7170 lbs |
Cargo Capacity | 2030 lbs | Fresh Water Capacity | 40 gals |
Grey Water Capacity | 65 gals | Black Water Capacity | 33 gals |
Tire Size | 15" | Furnace BTU | 25000 btu |
Description
Single Slide Starcraft Autumn Ridge SE Travel Trailer w/Rear Living Area Including 2 Swivel Rockers w/End Table & Overhead Cabinet, Corner Ent. Center w/19" LCD TV, J-Steel Sofa & Booth Dinette Slideout or Opt. Free Standing Table & Chairs or Extendable Dinette Options IPO Standard Booth, Refrigerator, Pantry, Dbl. Sink, 3 Burner Range w/Micro. Above, Side Aisle Bath w/Angle Shower, Wardrobe, Toilet & Lav. w/Med. Cabinet, Dbl. Bath Entry, Front Queen Bed w/Chests and Opt Wardrobes and Much More!
Features
- Bar and towel ring
- Glass shower door (select models)
- Large sink in bathroom
- Marine toilet with foot flush
- Medicine cabinet w/mirror
- Residential 6-panel passage door
- Shower curtain with curved shower track
- Toilet paper holder
- Vinyl flooring
- 312 coil innerspring mattress w/1" padding
- Bedroom roof vent
- Bi-fold privacy door (select models)
- Carpeting w/padding (select models)
- Sliding, pocket-style door (select models)
- TV shelf
- Under-bed storage, bed lifts easily on gas struts
- Vinyl flooring
- .024" aluminum exterior skin
- 1/2" plywood dinette, bed and bunk platforms
- 2" x 3" longitudinal floor joists on 16" - 18" centers
- 5/8" tongue and groove plywood main floor decking
- 81" living room ceiling height
- Electric-powered slideout (all slideout models)
- Fully-decked roof with 3/8" plywood
- I-Class Cambered structural steel I-Beam frame
- One-piece, seamless, rubber roof material
- Poly Flex one-piece underbelly covering
- R-7 fiberglass insulation in sidewall, roof and floor
- Roof rafters, constructed of residential style tapered 4-1/2" trusses
- Wall studs on 16" centers
- 15" radial tires
- Amber patio light w/inside switch
- Baggage doors are lockable and radius-cornered w/heavy-duty grab handle
- Big Easy entrance step with 10" deep treads (select models)
- Bumper w/drain hose carrier and end caps
- Chrome hub caps
- Exterior speakers, high-output marine grade (2)
- E-Z Lube axles
- Foldable, exterior grab handle
- Front window w/flush-mounted stone guard (select models)
- Galvanized steel wheel wells (insulated on non-slide models)
- Painted bottom radius skirting
- Propane gas bottle cover, made of molded ABS
- Radius-cornered fiberglass entrance door w/screen door
- Rain guttering, molded w/drip spouts
- Roof ladder
- Stabilizer jacks (2 pair)
- Tinted, black, radius-cornered awning-style windows
- 110V G.F.C.I. protected exterior receptacle
- 12V demand water pump
- 12V electrical system w/deluxe 110V 45-amp power converter
- 30-amp. power cord
- 6-gallon gas/electric auto-ignition water heater
- ABS holding tanks
- A/C chill grill
- Auto-ignition furnace with wall thermostat
- Hook-up for city water
- In-floor ducted heat
- Outside shower
- Systems monitor panel
- Water system winterization kit
- 19" LCD HD TV in living area
- Cable and satellite TV prepped
- Carpeting w/padding
- Crank-up digital TV antenna with signal booster
- Decorative nickel lighting over sofa and dinette
- Fabric covered box valances w/lambrequin legs
- Hardwood message center
- Hide-A-Bed
- Folding convertible sofa
- Sierra Maple cabinetry
- Overhead cabinetry in slideout room above sofa
- Pleated night shades
- Raised panel upper cabinet doors (kitchen only)
- Residential furniture, designed and made by Starcraft
- Roof-mounted antenna for radio
- Swivel rocker(s) (1 or 2 on select models)
- Wallpaper border
- 3 burner range w/9,000 BTU SuperBurner and piezo igniter
- Access doors to the dinette booth
- Acrylic residential-style sink
- Dream Dinette mechanism, raises and lowers dinette table top (select models)
- Extra large picture window at dinette
- Sierra Maple raised-paneled doors and drawers on overhead cabinetry and refrigerator
- Mixing high-rise faucet
- Oversized oven
- Range hood w/light and exhaust fan
- Sponge holder under sink
- Break-away switch
- Carbon monoxide alarm
- Dead-bolt lock on entrance door
- Dual hitch safety chains
- Fire extinguisher
- Multiple egress windows
- Propane alarm
- Smoke alarm
- Tinted safety glass windows
- A/C central (13,500 or 15,000 BTU) with wall thermostat and louvered directional ceiling vents
- Double 30 lb. propane gas bottles w/regulator
- Skylight in tub/shower area
- Multi-Media Premium Sound System AM/FM/CD/DVD stereo with MP3 and iPod input jack
- Carefree Travel'r 12 volt electric patio awing
- Microwave oven with carousel
- Bathroom power vent
- Quilted bedspread
- Bi-fold cover for range
- Shirt wardrobes in bedroom
- Sink cover/cutting board (1)
- ABS tub surround
- Water heater bypass
- CSA Standards
- Customer Value Package
- Customer Value Package w/15,000 BTU A/C upgrade
- Enclosed, insulated and heated underbelly
- Expandable dinette (select models)
- Free-standing table w/4 chairs (select models)
- Front diamond plate
- Linoleum in living area
- Portable outside gas grill
- Satellite Kit
- Sofa IPO swivel chairs (2) (select models)
- Spare tire w/carrier and vinyl tire cover
- Trundle bed ILO Futon (329 BHU)
- Water purification system
See us for a complete list of features, options and warranty information.
All standard features and specifications are subject to change.
