Floorplan - 2015 Forest River RV Wildcat 295RSX eXtraLite
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1 of 18
+18-
Sleeps 4
-
3 Slides
-
Rear Living AreaKitchen Island
-
32ft Long
-
9,363 lbs
-
Summerstone, Buckskin, Hazelnu

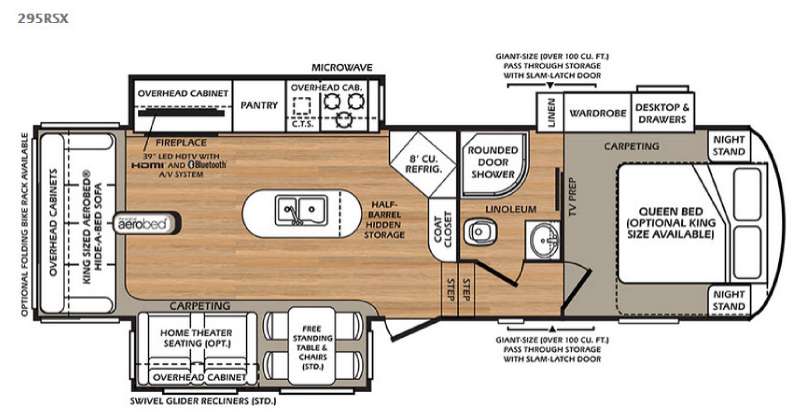

295RSX Floorplan
295RSX Floorplan
Specifications
Specifications
| Sleeps | 4 | Slides | 3 |
| Length | 32 ft 5 in | Ext Width | 8 ft |
| Ext Height | 12 ft 6 in | Interior Color | Summerstone, Buckskin, Hazelnu |
| Hitch Weight | 1630 lbs | GVWR | 13630 lbs |
| Dry Weight | 9363 lbs | Cargo Capacity | 2636 lbs |
| Fresh Water Capacity | 50 gals | Grey Water Capacity | 100 gals |
| Black Water Capacity | 50 gals | Tire Size | ST235/80R16/E |
| Furnace BTU | 35000 btu |
Description
Description
The Wildcat 295RSX fifth wheel by Forest River offers triple slides and a rear living area.
As you enter the fifth wheel, to the left is a slide with a free-standing table and chairs, and swivel glider recliners, or you can choose optional home theater seating. Along the rear wall there is a king sized Aerobed hide-a-bed sofa. The other slide in the living and kitchen areas offer a TV with a fireplace below, pantry, three burner range, and microwave. In the corner of the kitchen you will find a refrigerator, and next to the refrigerator is a coat closet. The kitchen island also offers extra counter space as well as the double kitchen sink.
As you step up the stairs, the bathroom is on the left. Inside the bathroom there is a toilet, sink, and shower with rounded door. The bathroom has a private entrance into the bedroom.
Inside the bedroom you will find a queen bed, or you can choose an optional king bed, and nightstands on either side of the bed. The slide has a desktop & drawers, wardrobe, and linen cabinet.
There are plenty of overhead cabinets throughout the inside of the fifth wheel, as well as a large exterior pass through storage area.
Features
Features
Standard Features (2015)
Executive Chef Kitchen
- Raised Panel Hardwood Glazed Cherry Cabinetry
- Teflon Spacers in Cabinet Doors
- Residential Hidden Hinges (Fully Adjustable)
- Solid Core Cabinet Stiles with Screwed (not stapled) Construction
- Residential Brushed Chrome Finish Door and Drawer Hardware
- Residential Full-Extension Steel Ball-Bearing Drawer Glides
- Stainless Steel Microwave Oven with Turntable
- Large 8 cu. ft. Refrigerator (Made in U.S.A.)
- Raised Six-Panel Hardwood Glazed Cherry Refrigerator Door Front Insert
- Stainless Steel Kitchen Backsplash
- Design Collection Corian Solid Surface Countertop (Kitchen)
- Flush-Mount Corian Sink Covers (Kitchen)
- Extra Large Dual-Basin American Stonecast Composite Sink (Made in U.S.A., withstands temperatures up to 450 F degrees)
- Brushed Chrome Finish Pull-Out Residential Style Metal Sprayer Faucet
- Stainless Steel Range Vent with Light and Fan
- Stainless Steel 22" Oven (16" in 272RLX Only) with Sealed Burner Range and Cover
- Extra Large Pot and Pan Drawer Below Oven (Most Models)
- Deep Storage Overhead Kitchen Cabinets
- Extra Large Residential Pantry
- Toe Kicks in Kitchen Cabinet Base
- Premium Residential Congoleum "Tile" Linoleum
Living Room
- Hardwood Glazed Cherry Slide Room Fascia
- Booth Dinette with Pedestal Table (Converts to Bed, N/A 275CKX, 295RSX, 327CK, 331WP or 333MK)
- Full-Extension Storage Drawer and XL Utility Storage Cabinet under Booth Dinette
- Huge Panoramic Picture Window at all Dinettes (25% Larger!)
- Decorative Soft Shade "Crystal Ball" LED Lighting
- Overhead Cabinets in the Slide Out (Dinner Plate Depth)
- Pleated Night Shades
- aerobed® Hide-A-Bed Sofa (with Residential Queen Size Mattress)
- NEW! Furrion® DV1200 AM/FM/CD/DVD/USB AV System with Remote featuring Bluetooth® and HDMI®
- NEW! 39″ Furrion® Flat Panel LED HDTV (1080p) with HDMI® Hook-up (Fully Digital!)
- Taller Interior Slide Out Heights (6′2″ + Standard in All Floor Plans!)
- Independent Satellite, Cable, and HDMI Hook-ups
- LED Fireplace (4600 BTU Electric Space Heater, Heats Up to 400 sq ft!) with Multi-Function Remote (Select Models)
- Swivel Glider Recliner Set (2, Standard in Select Models, MADE IN U.S.A.)
- All Windows in Slide Out Room Open for Cross-Ventilation (vs. Non-venting Windows in Competition)
- Interior LED Lighting (Low Power Draw, Cool, Efficient, High-Output!)
- Shaw® Residential Carpeting with R2X™ Stain Guard (MADE IN U.S.A.)
Bathroom
- Residential Porcelain Toilet with Foot Pedal Flush
- Extra Large Stainless Steel Lavatory Sink
- Fully Built-in Wood Medicine Cabinet with Mirror
- GFI Recepts in Bathroom
- NEW! Custom Stone Tile Backsplash and Designer Wall Board
- NEW! Blue LED Accent Lighting
- Residential Tile Pattern Shower Surround
- Glass Shower Enclosure
- Rounded Glass Sliding Door Shower (all Wardrobe Slide Floor Plans)
- Shower Skylight
- Residential Metal Shower Drains in Tubs and Showers (vs. Competitor’s Plastic Drains)
- Power Vent Fan
Bedroom
- Exclusive Wildcamp Eco-Foam Queen-Size Pillowtop Mattress
- Updated Custom Queen-Size Bedspread and Pillows
- 6'4" + Standing Height Throughout Bedroom (Most Interior Headroom and Floor Space in Class!)
- USB/12V Phone Charging Station in Bedroom
- Dual LED Reading Lights over Bed (Cool to the Touch!)
- Dual-Ducted Air Conditioner Runs to Every Bedroom
- Hydraulic Struts to Lift the Bed Up for Storage (Select Models)
- Convenient 110V Outlets on Each Side of Bed
- Fully Finished Bed Bases
- Wardrobe Slide Room with Window for Cross Ventilation (Select Models)
- Nightstand in Bed Slides (Select Models)
- True Privacy Doors to All Bunk Rooms
- All Bedrooms Pre-Wired for TV (Cable and Satellite Prep) with Backer in Wall
Exterior
- NEW! Aerodynamic Custom Painted Fiberglass Front Cap with Built-in LED Lighting
- NEW! Dual LED Marker and Hitch Lights
- MOR/ryde Extended Pin Box (Adjustable)
- LED Exterior Lighting (Including Running, Marker, Signal, and Tail Lights)
- Custom Colored Skirt Metal
- Spring-Loaded Quick Release Jack Pins on Landing Gear Legs
- One-Touch Adjustable Electric Awning
- NEW! LED Awning Light Strip
- Flexible Extended Drip Spouts
- Outside Kitchen with Weber® Grill, Refrigerator, LP Quick Connect and TV Prep (293REX, 303BHX, 312BHX, 317RL, 323RB, 331WP, 337FB, and 344QB)
- Dual Marine-grade Outside Stereo Speakers
- Roof-Mounted Adjustable Amplified TV Antenna (Digital Signal Compatible)
- Custom Aluminum HiSpec™ Safety Wheels
- 16″ Load Range E 10-Ply Radial Tires (ST235/80/R16/E)
- Dexter Axles with EZ Lube™ Hubs and 12″ Brakes (MADE IN U.S.A.)
- MOR/ryde CRE/3000™ Suspension System (MADE IN U.S.A.)
- NEW! NXG™ BAL®Electrocoated Drop-Frame HSLA (High Strength, Low Alloy) Chassis with Pass-through Storage Garage
- Upgraded Universal Docking Center:
- Water Heater Bypass
- Winterization System
- Separate Cable and Dedicated Satellite Jacks
- Black Tank Flush
- LED Lighting
- Outside Shower Hookup with Detachable Quick Connect Coiled Hose
- 3M® Custom Automotive-Grade Graphics Package (MADE IN U.S.A.)
- Bus-style, Side Hinged Slam-Latch Baggage Doors (with Metal Catches, Locks, and Strike Plates vs. Plastic used by Competition)
- NEW! Custom Color T-60 High-Gloss Fiberglass Rear Wall
- Over-sized Pass Through Storage Garage (Biggest in Class! Up to 150 cu ft of Space!)
- LED Lighting in Pass-Through Storage
- Door Side Pass-Through Storage Entertainment Center Hook-ups (cable and 110V Outlets)
- Patio Light
- Folding 4-Step Entry Stairs with Light at Main Entry Door! (vs. triple step used by competition)
- Attic Vents for Roof Ventilation
- Black Frame Tinted Safety Glass
- Independent Cable/Satellite TV Hook-ups
- Furrion™ 50 Amp Powersmart™ LED Shore Power Inlet and Marine-style Heavy Duty Cordset
- Dual 30# LP Tanks Saddle-Mounted on Each Side of the Frame for Superior Weight Distribution
- LP Gas Quick Connect
- Manual Stabilizer Jacks
Safety
- Manual Backup on all Main Slide-Outs
- T-Mold Bulb Seats on all Slide-Outs
- LP Leak Detector
- Smoke Detector
- Fire Extinguisher
- Furrion Faultsmart LED Heavy Duty Cordset (with Reverse Polarity and Neutral Loss LED Indicators)
- Carbon Monoxide Detector
- LED Nightlight on Stairs
- Interior Stairwell Handrail
- Custom Made Grab Handle at the Entry Door
- GFCI Recepts (In Appropriate Locations)
- Easy Access, Lower 4-Step Entry Stairs (vs. triple step used by competition, Made in U.S.A.)
- Folding Entry Handle
- Battery Disconnect
- Break Away Switch
- Folding Rear Ladder
- Furrion Wireless Backup/Rearview Camera Ready (Pre-Wired and ready for plug and play installation)
- Spare 16" Load Range 'E' 10-Ply Radial Tire
- Scare Light
- One Year Coach-Net Emergency Roadside Assistance Plan
Wildcat's 6-Sided Alumacat Construction:
- 2″ Thick Vacuum-Bonded Fiberglass Laminated Sidewalls (with Ultra Dense Block Foam Insulation)
- 2″ Thick Vacuum-Bonded Fiberglass Laminated Slide Out (vs. Hollow, Hung Fiberglass)
- 2″ Laminated and Insulated Floor (with Ultra Dense Block Foam Insulation)
- 5″ Barrel Roof Truss System (Arched Ceiling Throughout Interior!)
- Crane Composites T-60 True High-Gloss Gel Coat Fiberglass Exterior Skin (Motorhome Walls!)
- Extra Large Rolled Side Metal
- Black Frame Tinted Safety Glass Windows (Fully Aluminum Framed vs. No Framing in Competition!)
- Fully Aluminum Framed, Laminated and Insulated Upper Bath Deck (6′4″ + Height)
- 3/8″ Decked (Front to Back) Full Walk-On Roof
Wildcat's Climatech Insulation Polar Package:
- R-10 Ultra Dense Block-Foam Sidewall Insulation
- R-14 Fiberglass Batt Roof, Cap, and Rear Wall Insulation
- R+HEATSHIELD Radiant-Barrier Insulation (Blocks 94% of Radiant Heat Transfer) Enhances Roof R-Values
- Fully Enclosed, Heated and Insulated Underbelly and Valves
- Duct Heated Holding Tanks (Active vs. Passive Heating in Competition)
- Insulated Bedroom and Bunk Room Floors (R-10 vs. No Insulation in Competition)
- Insulated and Heated Full Pass-Through Storage
Utilities
- NEW! 10 Gallon Suburban Quick Recovery DSI Gas/Electric Water Heater
- 35,000 BTU High-Ouput Furnace with Auto-Ignition (Largest in Class!)
- NEW! Standard 15K BTU Dometic "QuietCool"
- Dual Ducted Air Conditioner "Racetrack" with Triple Insulated, Foil Wrapped, Light Weight Ducts
- Digital Thermostat
- 65 Amp Power Convertor
- 12V Water Pump
- NEW! 50 Amp Service & Dual Ducted 2nd A/C Prep
- Large Holding Tank Capacities (Largest in our Class)
- Furrion Solar Power Prep Inlet
- All Lights 12V (Including all Slide-Out Lights)
- Space for Multiple Batteries
- Fully Enclosed Underbelly (Keeps Debris off Tanks, Water Lines, etc.)
Wildcat Exclusive Innovations
- NEW! BAL's E-Coated NXG™ Drop-Frame HSLA (High Strength, Low Alloy) Prime Steel Chassis (Made in U.S.A.)
- C.T.S. (Central Trash System) Integrated Trash Can Storage with Access Door (select models)
- NEW! Furrion® Wireless Backup/Rearview Camera Ready (pre-wired and ready for plug and play installation!)
- Repositionable Rear Bumper for Bike Rack Upgrade
Options
- NEW! Custom Décor Options: Buckskin, Topaz, Summerstone, Eastwood, and Hazelnut
- MANDATORY OPTION PACKAGE: Wildcat Advantage Package
- MANDATORY OPTION PACKAGE: Wildcat Technology Package
- MANDATORY OPTION: Premium High-Gloss Gel Coat Exterior Walls (T-60 Glass, Same Walls Used in Motorhomes!)
- Rear Electric Stabilizer Jacks
- 110V Residential Ceiling Fan
- IVC® Trekk™ "Wood Plank" Vinyl Flooring (minimal carpeting)
- Hardwood Free Standing Table (with Slide-out Leaf ) with 2 Storage Chairs and 2 Upholstered Folding Chairs
- Washer/Dryer Prep (317RL, 327CK, 331WP, 333MK, 344QB only)
- Low-Profile Second A/C requires 50 Amp service
- NEW! 9 cu ft Stainless Refrigerator Upgrade (in place of 8 cu ft standard refrigerator, MADE IN U.S.A.)
- Folding Bike Rack (Electro-coated, MADE IN U.S.A.)
- Serta® King Size Memory Foam Mattress upgrade (72″ x 80″, N/A 317RL or 337FB)
- 24″ Furrion® LED HDTV (Outside Kitchen)
- 24″ Furrion® LED HDTV (Bunkhouse Location)
- 32″ Furrion® LED HDTV (Master Bedroom Location)
- 32" Furrion® LED HDTV (Bunkhouse Location)
- Reclining Wall Hugger Theater Seating (select models, in place of recliners, MADE IN U.S.A.)
- Dyson® Digital Slim™ DC35 cordless vacuum (Select Models)
- MAXXIS® M8008 Tire Upgrade (4 tires, custom wheels, and spare)
- NEW! Furrion® Wireless Backup/Rearview Camera and Monitor Kit
- La-Z-Boy® Recliner Upgrade (select models, set of 2, in place of standard swivel glider recliners)
- NEW! Slide Room Awnings (2)
- NEW! Slide Room Awnings (3)
- NEW! Slide Room Awnings (4)
- Platinum Automotive Paint Package
- Automatic Leveling System
- 12V Heated Tank Warmers
- NEW! 90W Solar Panel Kit
- Dual-Pane Windows
- CSA Seal (Canada Only)
- Minimal Carpeting (varies per floor plan)
- LP Gas Outside Kitchen Grill (in place of Weber® Electric Grill)
See us for a complete list of features and available options.
All features and specifications are subject to change.
