+15-
Sleeps 4
-
1 Slides
-
Rear Living AreaFront Bedroom
-
29ft Long
-
5,360 lbs

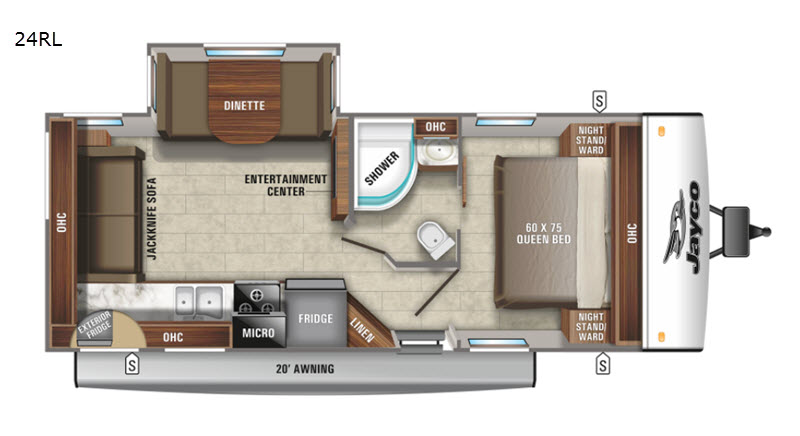

24RL Floorplan
Specifications
| Sleeps | 4 | Slides | 1 |
| Length | 28 ft 7 in | Ext Width | 8 ft |
| Ext Height | 10 ft 8 in | Int Height | 6 ft 6 in |
| Hitch Weight | 650 lbs | GVWR | 6500 lbs |
| Dry Weight | 5360 lbs | Cargo Capacity | 1140 lbs |
| Fresh Water Capacity | 42 gals | Grey Water Capacity | 30.5 gals |
| Black Water Capacity | 30.5 gals | Tire Size | 14" |
| Furnace BTU | 30000 btu | Available Beds | Queen |
| Refrigerator Size | 6 cu ft | Cooktop Burners | 3 |
| Shower Size | 34" | Number of Awnings | 1 |
| LP Tank Capacity | 20 lbs | Water Heater Capacity | 6 gal |
| Water Heater Type | Gas/Electric DSI | AC BTU | 13500 btu |
| TV Info | LED TV | Awning Info | 20' Power with LED Lights |
| Axle Count | 2 | Number of LP Tanks | 2 |
| Shower Type | Radius | Electrical Service | 30 amp |
Description
Jayco Jay Feather travel trailer 24RL highlights:
- Rear Living Room
- Queen Bed
- Jackknife Sofa
- Exterior Fridge
- Aluminum-Tread Steps
Looking for storage and counter space in your rear living area, well you have found it! The kitchen counter next to the jackknife sofa allows you to utilize this area as you like and not just for preparing meals while the overhead cabinets give you a place to store items up and away. And you can dine at the booth dinette slide while watching the LED TV after whipping up a warm meal using the Furrion range including an oven and three burner recessed glass cooktop. At night you can get cleaned up in the 34" radius shower in the double entry bathroom then retire to your own walk-around queen bed with nightstands and wardrobes on each side. And you might like to choose a tri-fold sofa option or theater seating option in place of the dinette that comes standard.
The Jayco Jay Feather travel trailers provide peace of mind with a superior construction process offering Stronghold VBL aluminum-framed vacuum-bonded lamination on every sidewall, rear wall and slide room wall on an American-made Norco frame with an integrated A-frame. Also included are American-made Goodyear tires and Dexter axles with self-adjusting electric brakes and galvanized steel wheel wells, and a 3/4 flush-mount fiberglass cap with blue LED lighting. The Sport Package is mandatory and offers a roof ladder, enhanced graphics package, roof-mount solar prep, and the Glacier package to mention a few features. The interior provides screwed and glued cabinetry, LED lighting throughout, a decorative backsplash and smoked glass decorative inserts on select overhead cabinets for style, plus much more depending on the Jay Feather you choose.
Features
Standard Features (2021)
Exterior Equipment
- Aerodynamic, rounded front profile with diamond plate
- Modern retro graphics package with two-colored sidewall
- Stronghold VBL™ vacuum-bonded, laminated floor, side, rear and slide room walls (Travel Trailer)
- Stronghold VBL™ vacuum-bonded, laminated floor, side, rear and front walls (Hybrids)
- Vacuum-bonded, laminated bed platforms with reverse-cambered support (1,000 lb. capacity) (All Hybrids)
- Keyed-Alike™ lock system (includes all tent latches on Hybrids)
- Magnum Truss™ Roof System with one-piece seamless DiFlex II material
- American-made Norco® frame with integrated A-frame
- Single Axle (X17Z) (Hybrid)
- Dual Axles (N/A X17Z Hybrid)
- G20 tinted safety-glass windows
- Marine-grade exterior speakers with blue LED accent lighting (2)
- American-made Dexter EZ Lube® axles
- Galvanized steel and impact-resistant wheel wells
- Slideouts with double deals, barrier sponges and U-channel drop spout (select models)
- 30 amp service
- Outside grill propane quick-connect port
- Water-repellent, scratch resistant Jayco DuraTek™ vinyl tent material with zipper windows (all Hybrids)
- Permanently attached tent-to-bed base design (All Hybrids)
- Rear camera backup prep
- Folding assist handle on main entry doors (Travel Trailers)
- Aluminum tread entry steps
- Outside camp kitchen (standard on select models) (Travel Trailers)
- Battery quick disconnect (Travel Trailers)
- Slide topper prep (select models with slide rooms)
- Inverter pre-wire
- Exterior TV prep with 120V electric and cable outlets
Interior Equipment
- Choice of two interior design packages- Modern Farmhouse or Vintage Wash Grey
- LED lighting throughout
- Smoked glass decorative inserts (select overhead cabinets)
- Screwed and glued cabinetry
- Residential vinyl flooring with cold crack resistance
- Decorative wall clock (select models)
- Plywood dinette, bunk and bed bases (applicable models)
- Ball-bearing drawer glides with 75 lb. capacity
- 6 cu. ft. gas/electric refrigerator
- Residential oven with 3-burner recessed cooktop and glass cover
- Residential-style kitchen countertops
- Microwave
- Decorative backsplash
- 4 in. high-density dinette cushions with vinyl backing
- Drying rack- sink cover combo for dual bowl sink (Hybrids - CVP) (Travel Trailers - SP)
- Mattress with bedpsread (select models) (Travel Trailers)
- Jayco exclusive Teddy Bear "soft-touch" residential-style bed mads (select models)
- 120V outlet and corner shelf in fixed bunks (bunk models only) (Travel Trailers)
- Plastic foot flush toilet
- Bathroom skylight and roof vent
Customer Value Package (Mandatory)
- American-made nitro-filled Goodyear® radial tires with self-adjusting brakes
- Aluminum rims
- 20 lb. propane bottles with auto regulator (2)
- 13,500 BTU A/C
- Spare tire
- Detachable power cord
- Power awning with LED lights
- Black tank flush
- Outside shower
- Power tongue jack
- Manual stabilizer jacks (4)
- 6 gal. gas/electric DSI water heater
- AM/FM/Bluetooth® stereo
- Side-marker camera prep
- Rear camera backup prep
- 360° Siphon
- Enclosed underbelly
- Power roof vent (in main living area) (Hybrids) (Travel Trailers - SP)
- Roof-mount solar prep (Hybrids) (Travel Trailers - SP)
- Inverter pre-wire
- JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patent-pending) (Hybrids) (Travel Trailers - SP)
- Drying rack- sink cover combo for dual bowl sink (Hybrids) (Travel Trailers - SP)
Sport Package (Mandatory)
- Roof ladder (Travel Trailers)
- Aluminum tread entry steps
- Enhanced graphics package
- Front molded fiberglass cap (Travel Trailers)
- JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patent-pending) (Hybrids - CVP) (Travel Trailers)
- Roof-mount solar prep (Hybrids - CVP) (Travel Trailers)
- Glacier Package (Travel Trailers)
- 24 in., 32 in. or 40 in. LED TV (Travel Trailers)
- Drying rack/ sink cover (Travel Trailers)
- Fan-Tastic Vent power roof vent (main living area) (Hybrids - CVP) (Travel Trailers)
Decor
- Vintage Washed Grey
- Modern Farmhouse
Options
- U-Dinette (16RK)
- Customer Value Package (X17Z, X19H, X23B, X23E)
Goodyear tires (Made in the USA), 13,000 BTU A/C, 6 gallon gas/electric DSI water heater, aluminum rims, black tank flush, detachable power cord, enclosed underbelly, outside shower, power awning with LED lights, (4) manual stab jacks, AM/FM/Bluetooth® stereo, self-adjusting electric brakes, spare tire with cover, Fan-Tastic fan power roof vent, electric tongue jack, solar prep roof mount, sink cover/ drying rack, inverter prewire, 360 degree siphon, side camera prep, rear camera backup prep, JaySMART™ backup lighting, (2) 20 lb. propane bottles with auto regulator
- Solar Power Package (X17Z, X19H, X23B, X23E)
100 watt solar panel and 30 Amp controller
- A/C 15K BTU roof mounted (X17Z, X19H, X23B, X23E)
- 8 cu. ft. 12V refrigerator (X17Z, X19H, X23B, X23E)
- 24" LED TV (X17Z, X23B)
- 32" LED TV (X19H, X23E)
- Heated tank pads (X17Z, X19H, X23B, X23E)
- 4" heated bed mat (2) (X17Z, X19H, X23B)
- 4" heated bed mat (3) (X23E)
- Customer Value Package (X213, 166FBS, 16RK, 18RBM, 20BH, 22RB, 22RK, 24BH, 24RL, 25RB, 27BHB, 27RL, 30QB)
Goodyear® tires, power awning with LED lighting, spare tire, black tank flush, detachable power cord, outside shower, 6 gal. gas/electric auto ignition DSI water heater, aluminum rims, AM/FM/Bluetooth® stereo, 13,500 BTU A/C, self-adjusting electric brakes, power tongue jack, (4) manual stab jacks, (2) 20 lb. LP tanks, rear camera backup prep, side camera prep, 360 siphon
- Sport Package (X213, 166FBS, 16RK, 18RBM, 20BH, 22RB, 22RK, 24BH, 24RL, 25RB, 27BHB, 27RL, 30QB)
Front molded fiberglass cap, enhanced exterior graphics, 24", 32" or 40" LED TV (varies by model), roof ladder, drying rack/sink cover, JaySMART™ backup lighting, aluminum tread entry steps, Fan-tastic power roof vent, roof mount solar prep, Glacier Package
- Solar Power Package (X213, 166FBS, 16RK, 18RBM, 20BH, 22RB, 22RK, 24BH, 24RL, 25RB, 27BHB, 27RL, 30QB)
100 watt solar panel and 30 Amp controller
- JAYCOMMAND™ "Smart RV" System (includes TPMS) (X213, 166FBS, 16RK, 18RBM, 20BH, 22RB, 22RK, 24BH, 24RL, 25RB, 27BHB, 27RL, 30QB)
- A/C 15K BTU roof mounted (X213, 166FBS, 16RK, 18RBM, 20BH, 22RB, 22RK, 24BH, 24RL, 25RB, 27BHB, 27RL, 30QB)
- 50 Amp service with 2nd A/C prep (22RB, 22RK, 24BH, 24RL, 25RB, 27BHB, 27RL, 30QB)
- 8 cu. ft. 12V refrigerator (X213, 16RK, 20BH, 22RB, 22RK, 24BH, 24RL, 25RB, 27BHB, 27RL, 30QB)
- 30 lb. LP gas bottles (2) (X213, 166FBS, 16RK, 18RBM, 20BH, 22RB, 22RK, 24BH, 24RL, 25RB, 27BHB, 27RL, 30QB)
- MORryde® StepAbove™ entry steps (X213, 166FBS, 16RK, 18RBM, 20BH, 22RB, 22RK, 24BH, 24RL, 25RB, 27BHB, 27RL, 30QB)
- Heated tank pads (X213, 166FBS, 16RK, 18RBM, 20BH, 22RB, 22RK, 24BH, 24RL, 25RB, 27BHB, 27RL, 30QB)
- Tri-fold sofa in place of jackknife sofa (24RL, 25RB, 27BHB, 27RL)
- L-lounger in place of dinette (22RB, 24BH, 30QB)
- Theater seating with table trays (22RB, 24BH, 24RL, 25RB, 27BHB, 30QB)
- Booth dinette in place of theater seating (22RK)
(Hybrids - Expandables)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
